1: Parameter of function(電機參數)
| Index | type | Voltage  | Frequency  | Speed  | Input/Output  | Mass  |
| 1 | ECQ20A230 | 198-253 | 50/60 | 1300/1550 | 30/20 | 0.7 |
| 2 | ECQ20A115 | 90-128 | 50/60 | 1300/1550 | 30/20 | 0.7 |

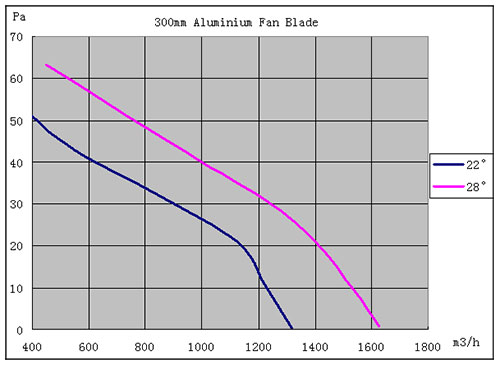

2: Airflow(風量測試)
ECQ motor Air performance curves measured  at a constant speed of 1,300 rpm.
| Index | Motor | Axial impeller  | Axial impeller  | Input  |
| 1 | ECQ20 | 254 | 15 | 20.5 |
| 2 | ECQ20 | 300 | 22 | 24.4 |
| 2 | ECQ20 | 300 | 28 | 28.0 |
﹡ Speed = 1300RPM

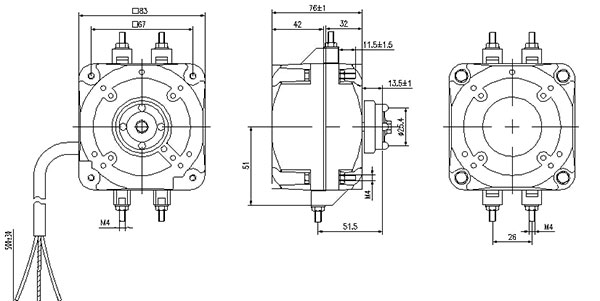

3:Dimension of installation(機械尺寸)
